PRODUCT PARAMETERS
| Power KW | Power HP | Pressure MPa | Air Delivery m³/min | Exhaust Temperature ℃ | Cooling | Compression Level | Noise db(A) | Voltage V/PH/HZ | Weight KG | Dimensions (L*W*H） mm | Outlet Diameter imch/mm |
| 15KW | 20HP | 0.7 | 2.4 | ≤+15℃ ≤Ambient temperature +15℃ | Air Cooling | Single stage | 68±5 | 380V/50HZ | 300 | 1080*750*1000 | RP3/4 |
| 0.8 | 2.2 | ||||||||||
| 1 | 2.0 | ||||||||||
| 1.2 | 1.7 | ||||||||||
| 18.5KW | 25HP | 0.7 | 3.7 | ≤+15℃ ≤Ambient temperature +15℃ | Air Cooling | Single stage | 68±5 | 380V/50HZ | 380 | 1380*850*1160 | RP1 |
| 0.8 | 3.5 | ||||||||||
| 1 | 3.1 | ||||||||||
| 1.2 | 2.7 |
PRODUCT ADVANTAGES
1. Convenient service:
Provide high-quality pre-sale, in-sale and after-sale services to ensure that users get timely and professional technical support and solutions in the process of use.

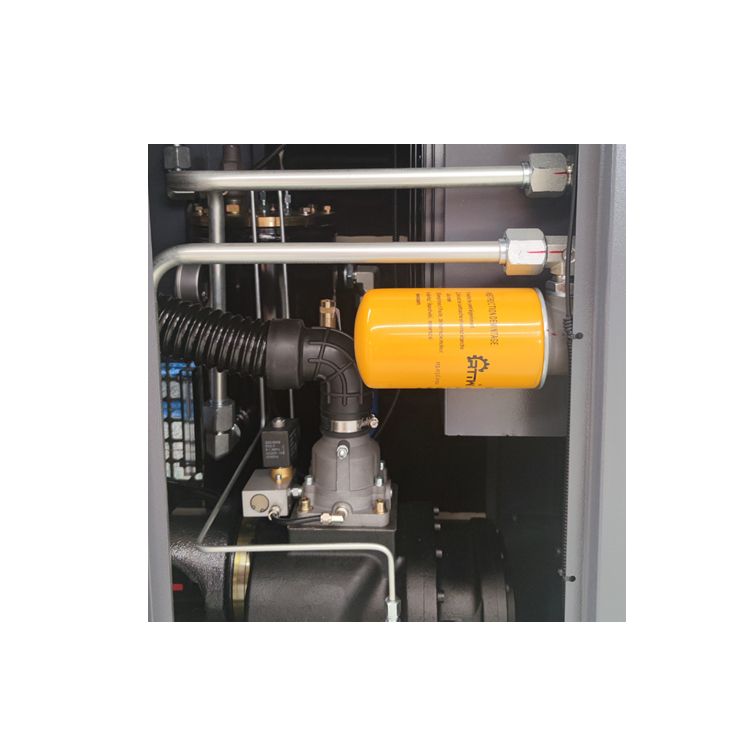

2. Durable and efficient motor and rotor:
Durable and efficient motors and rotors of air compressors are the core components of air compressor systems, which directly determine the performance and operating efficiency of air compressors. During the design and manufacturing process, we pay attention to the performance and quality of motors and rotors, and carry out strict matching and testing.

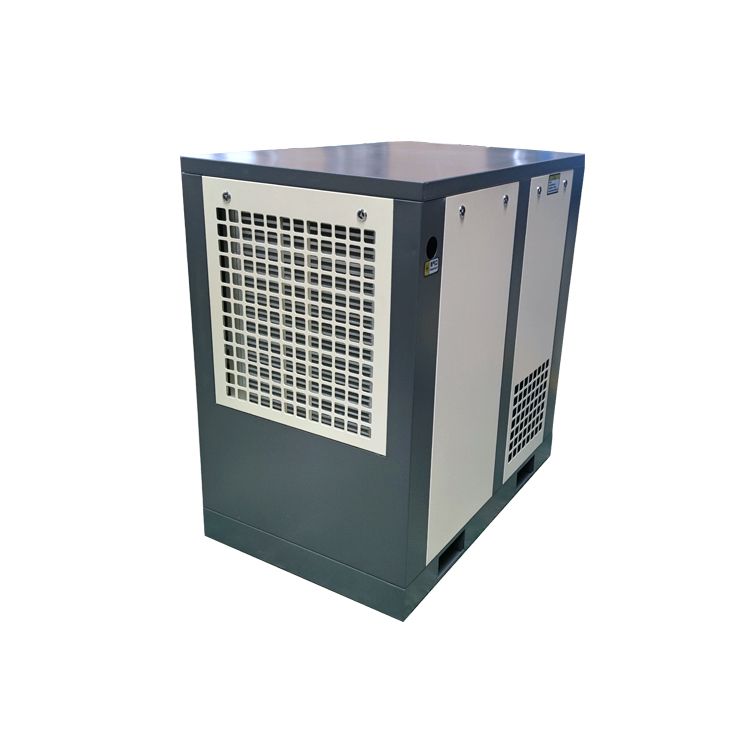

3. Unique Cooler Design
Side exhaust design, compared with other top exhaust designs, it can avoid the negative impact of dust accumulation on the cooling effect.
